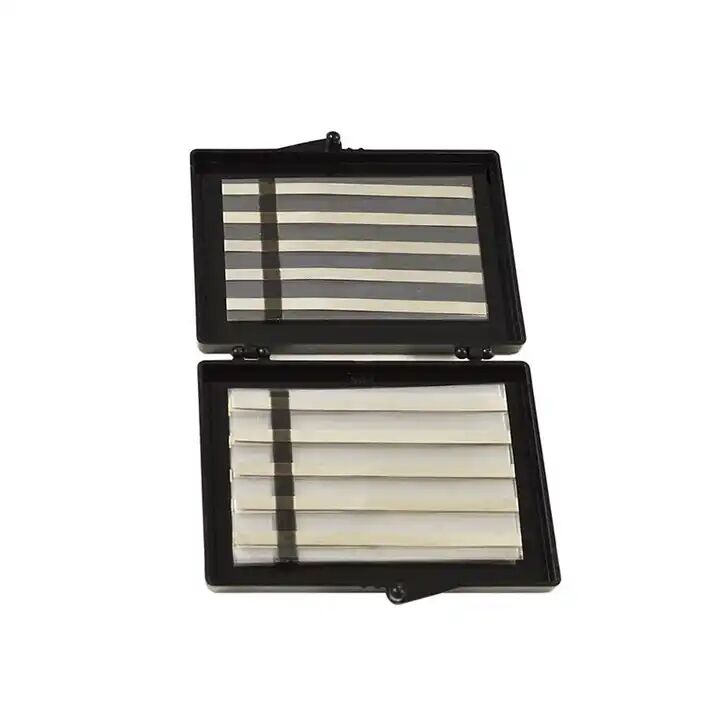

Our Nickel Tab with Adhesive Polymer Tape is engineered for use as the negative terminal in pouch-type Li-ion batteries. Manufactured from ultra-high purity Nickel (≥99.99%), this tab features a pre-applied adhesive polymer layer that enables immediate hot sealing, simplifying the assembly process and improving production efficiency in battery manufacturing.
| Property | Value |
|---|---|
| Material | Nickel 99.99% + Adhesive Polymer Tape |
| Length | 60 mm |
| Width | 4 mm |
| Thickness | 0.1 mm |
| Max. Loading Current | 3 A |
| Net Weight | 160 mg/pcs |
These parameters may vary depending on specific pouch cell designs:
Heat-Sealing Blade Type: Soft blade (rubber-coated)
Upper Blade Temperature: 180–200 °C
Lower Blade Temperature: 160–180 °C
Pressure: 40 PSI (0.3 MPa)
Heating Time: 3 seconds
Used as negative terminal tabs in pouch-type lithium-ion polymer batteries
Adhesive polymer layer provides seamless integration with pouch film during the heat-sealing process
Suitable for battery R&D, mass production, and custom cell assembly
High-purity nickel ensures excellent electrical conductivity and thermal resistance, enhancing battery performance and safety
